Layout for a one-sided printed board (6x DB9)

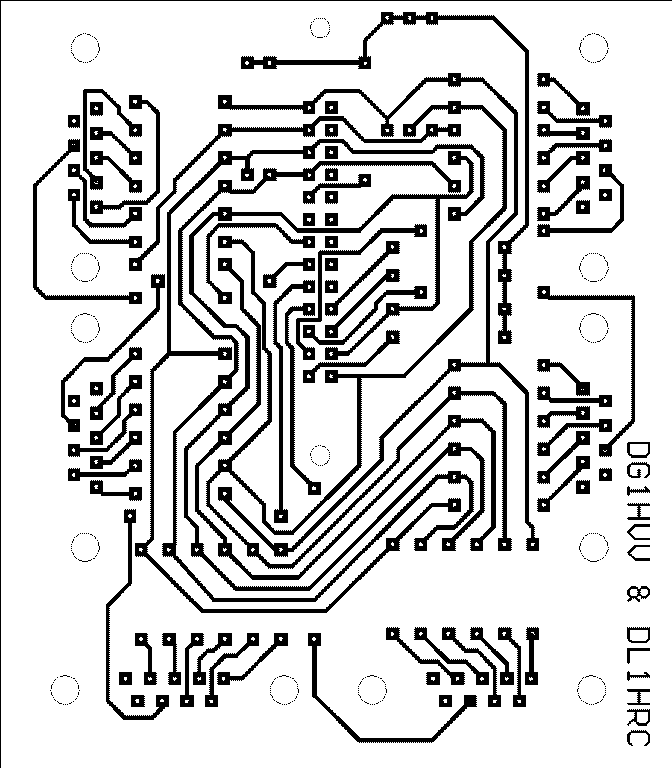

back side

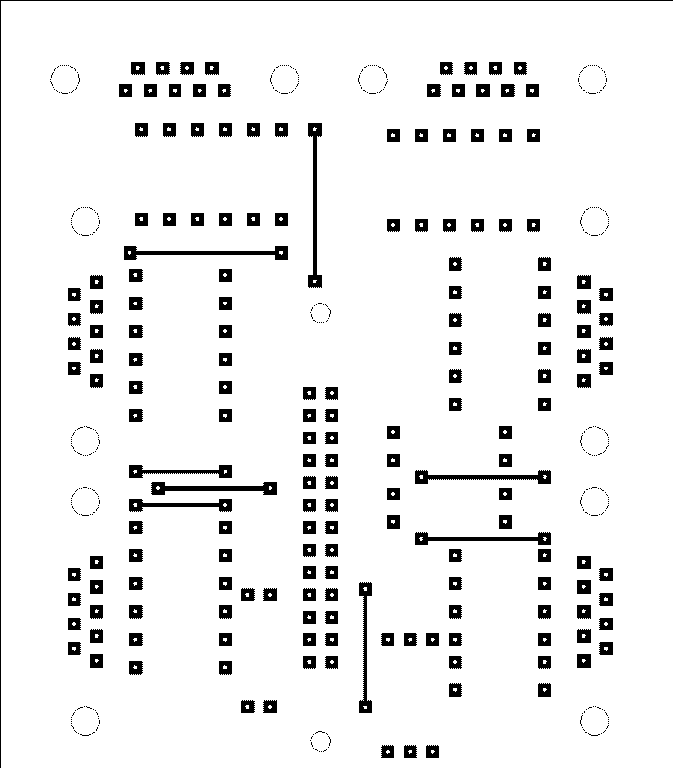

front side

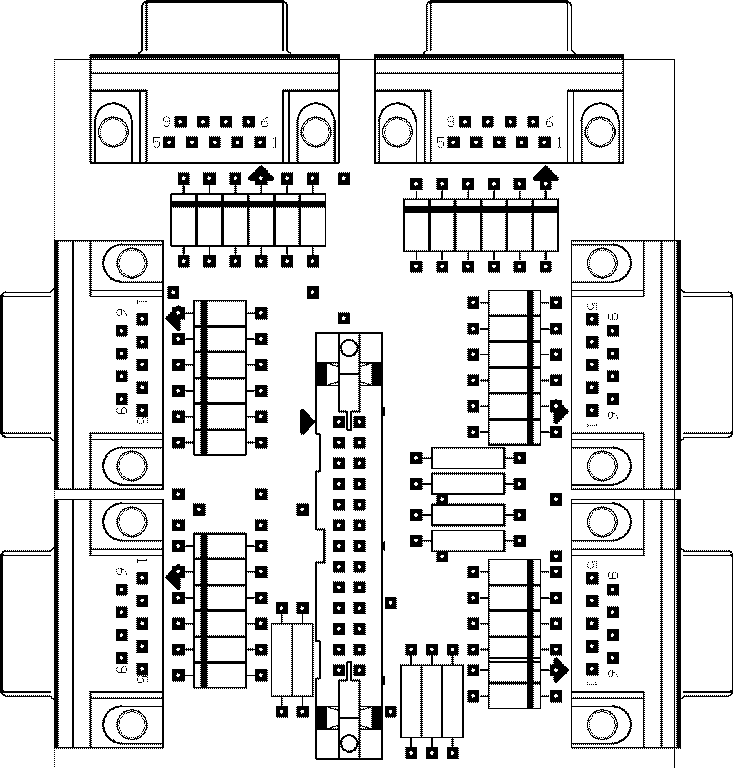

components

Klick on the image for a bigger resolution.


Part List:

diod 1N4148
resistor 6K8
DB9 connector (male, print mount)
DB25 connector + shelf (male )
26pin connector (male, print mount)
26pin connector (female, crimp)
cable 26pin
36x
9x
6x
1x
1x
1x
1m

Pin assignment on DB9:

1
2
3
4
5
6
7
8
9
up
down
left
right
n.c.
F1
F2
Ground
n.c.

last modified on 10-06-98.
