Layout for a two player adapter (2x DB9)

If you are using the DirectPadPro driver - you have to use js6 und js7 (pin 7 and 8 of the printer connector)

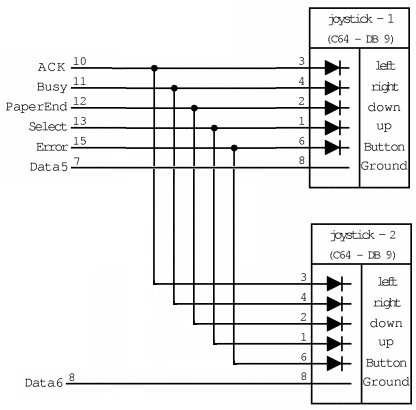

Schematic:


Part List:

diod 1N4148
DB9 connector (male) + shelf
DB9 connector
DB25 connector (male) + shelf
cable 7-wires
12x
1x
1x
1x
10cm

Pin assignment on DB9:

1
2
3
4
5
6
7
8
9
up
down
left
right
n.c.
F1
F2
Ground
n.c.
